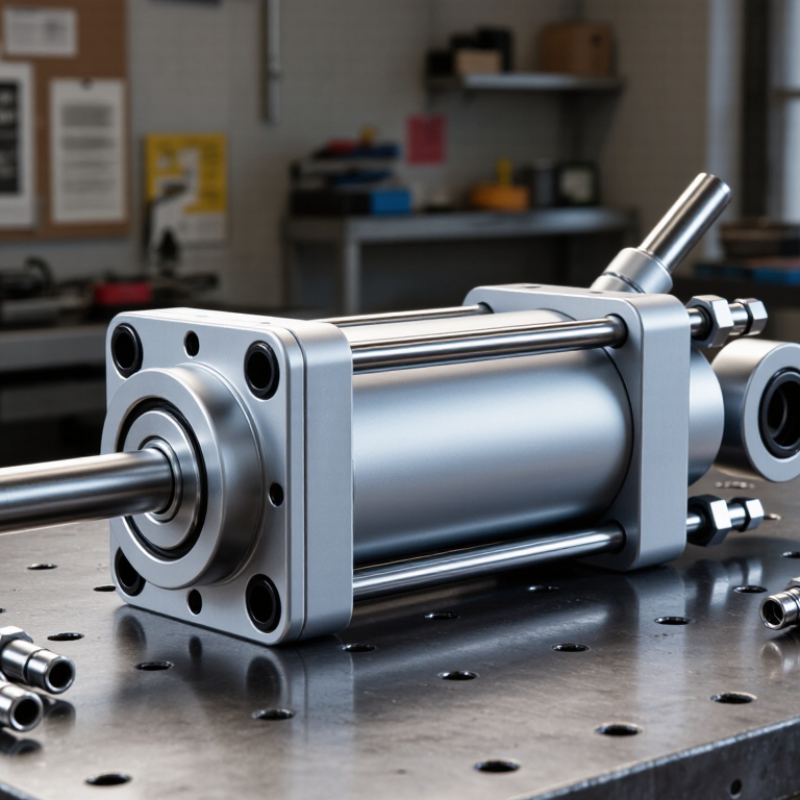

How to Choose a Compact Hydraulic Cylinder?

Choosing a Compact Hydraulic Cylinder is a practical engineering decision, not merely a search for the smallest actuator. Space may be limited, but force, stroke, speed, pressure, and service life still matter. A cylinder that fits the machine can fail quickly if its rod faces side loading or poor alignment.

Hydraulics author Anthony Esposito is often associated with this practical principle: “The best hydraulic design is not the smallest design, but the design that satisfies the duty reliably.” That idea should guide every selection. Measure the available mounting space carefully. Check the required force at working pressure. Then compare the bore, rod diameter, stroke, retracted length, and mounting style.

Small errors become expensive.

For example, a 40-millimeter stroke may look adequate on paper, yet the linkage could lose useful movement near its mechanical limit. A narrow rod may save space, but it can bend under an offset load. Seals also deserve attention. Dust, moisture, heat, and frequent cycling can change the correct material choice. Review the manufacturer’s pressure ratings, fatigue data, dimensional drawings, and maintenance guidance before approval.

Experience adds an uncomfortable lesson: specifications are sometimes incomplete, and real machines rarely behave perfectly. Installation tolerance, contaminated oil, or unexpected vibration can reduce performance. Leave a sensible safety margin. Confirm assumptions with testing whenever possible. The right Compact Hydraulic Cylinder balances compact dimensions with dependable force, controlled motion, safe operation, and realistic field conditions.

How to Choose a Compact Hydraulic Cylinder?
Table of Contents [Hide]
1 Define the Space, Load, and Motion Requirements
2 Match Bore, Stroke, and Pressure to the Application
3 Select the Right Mounting Style and Port Configuration
4 Check Materials, Seals, and Operating Environment
5 Compare Durability, Maintenance, and Total Cost

Define the Space, Load, and Motion Requirements

How to Choose a Compact Hydraulic Cylinder?

Choosing a compact hydraulic cylinder starts with the space it must occupy, not the catalog label. Measure the available envelope when the cylinder is fully retracted and extended. Include ports, fittings, pins, hoses, and service access. A few millimeters can decide whether installation succeeds. Record the mounting style and pin-to-pin distance. Compact bodies often save length, but they may offer less stroke. This trade-off deserves careful attention.

Define the load with real operating conditions. Calculate required force using hydraulic pressure and piston area. Use actual working pressure, not the advertised maximum. Add a suitable safety margin for shock loads, friction, and uneven loading. Side loads can damage the rod and seals, even when the lifting force looks acceptable. A common mistake I have made is checking only the static weight. Moving loads behave differently.

Motion requirements determine the cylinder’s practical performance. Specify stroke length, extension speed, retraction speed, cycle frequency, and stopping accuracy. A short stroke repeated rapidly can create unexpected heat. Consider cushioning at the end of travel, especially when a heavy assembly stops abruptly. Flow controls may be needed when gravity accelerates the load. Check fluid compatibility, operating temperature, seal material, and mounting alignment. A simple prototype can reveal vibration or twisting that calculations miss.

Match Bore, Stroke, and Pressure to the Application

Choosing a compact hydraulic cylinder starts with three measurements: bore, stroke, and working pressure. Bore determines pushing force. Use F = P × A, then allow for friction and pressure loss. A 40 mm bore at 10 MPa produces about 12.6 kN on extension. Retraction force is lower because the rod occupies part of the area. Shorter is not always better. A small bore may fit neatly, but it can overheat while handling a heavy load. Check the actual load, not only its average value.

Stroke must cover the full movement without forcing the cylinder to reach its mechanical limit. Add a small safety margin, but avoid excessive length in a tight machine frame. Pressure selection should include normal pressure, startup surges, and unstable pump conditions. A cylinder rated near the system’s maximum may fail sooner than expected. In one workshop test, a compact unit fit the space but stalled when oil temperature dropped. The overlooked issue was pressure loss through a narrow valve. Side loads can also damage the rod and seals, even when bore and pressure look correct. Use guides, inspect mounting alignment, and test the cylinder under real load cycles. My earlier sizing mistake was trusting catalog figures without checking installation conditions. That lesson still matters.

Select the Right Mounting Style and Port Configuration

How to Choose a Compact Hydraulic Cylinder?

Select the mounting style before checking the cylinder’s outside dimensions. A clevis mount suits pivoting equipment, such as small lifting arms. It allows movement around one pin and reduces binding during operation. A flange mount offers stronger axial support for pushing applications. Foot mounts work well on flat frames, but they need accurate alignment. Trunnion mounts can control rotation on compact machinery with limited space. Never treat mounting hardware as an afterthought. Side loading can quickly damage the rod, seals, and guide.

Port configuration also affects installation quality. Choose ports that match the hose route, service access, and available clearance. Side ports may simplify plumbing inside a narrow frame. Rear ports can keep hoses away from moving parts. Confirm the thread standard, port size, rated pressure, and sealing method from reliable technical data. A port that is too small may restrict flow and slow cylinder movement. A port placed too close to the mounting surface can make wrench access frustrating. I have seen compact installations fail because the hose bent sharply after assembly. Allow a gentle bend radius and room for inspection. Metric and imperial threads may look similar, yet they are not interchangeable. Measure carefully. Test alignment under real load, not only on the workbench. Some designs seem perfect on paper, but maintenance access proves otherwise.

How to Choose a Compact Hydraulic Cylinder? Select the Right Mounting Style and Port Configuration

This engineering comparison uses a relative 1–5 selection score. Clevis mounts are suitable where angular movement and alignment tolerance are important, while flange mounts provide rigid positioning for direct-force applications. Side ports generally improve hose accessibility in tight spaces, whereas rear ports can support cleaner routing when the cylinder is installed against a mounting plate.

Check Materials, Seals, and Operating Environment

Choosing a compact hydraulic cylinder starts with its working conditions, not its small footprint. In field inspections, I have seen undersized cylinders fail because material strength was treated as a minor detail. Steel bodies suit demanding loads and repeated pressure cycles. Stainless steel offers better resistance near washdown areas, moisture, or corrosive chemicals. However, stainless construction does not solve every corrosion problem. Rod finish, gland design, and mounting hardware also matter. Match the material to pressure, load, temperature, and maintenance access. Keep the calculation visible.

Seals deserve equal attention. Polyurethane seals handle abrasion well in many general applications. PTFE-based seals can perform better with heat, chemicals, or low-friction movement. Elastomer choices vary with fluid compatibility and temperature changes. A seal that works in a clean workshop may harden beside a hot press. Dust, grit, and side loading can shorten its life quickly. Avoid choosing by fluid name alone. Check temperature peaks, pressure spikes, speed, and contamination. Small omissions become expensive.

Tips: Ask for pressure and temperature records, not estimates. Inspect the rod after installation. A bright score line can reveal misalignment early. Leave enough space for seal replacement. If the environment is uncertain, test a sample cylinder under realistic cycles. This may feel slow, but it can expose an assumption before production does. Document every material and seal choice. Future maintenance teams need more than a part number.

How to Choose a Compact Hydraulic Cylinder? — Check Materials, Seals, and Operating Environment

Selection Dimension Common Option or Range Key Technical Characteristics Recommended Application Limitations and Checks Selection Priority
Cylinder Type Single-acting Hydraulic pressure produces movement in one direction; a spring or external load provides the return stroke. Clamping, lifting, ejecting, and applications where the return load is predictable. Return force and available spring space must be sufficient. Retraction speed may vary with the load. Application-dependent
Cylinder Type Double-acting Hydraulic pressure controls both extension and retraction, providing more consistent force and motion. Machine tooling, automation, material handling, and controlled bidirectional movement. Requires two hydraulic connections and adequate return-line capacity. High control
Available Space Short overall length and reduced external envelope Compact construction saves installation space but can limit stroke length, port size, and internal component dimensions. Constrained machinery, compact fixtures, mobile equipment, and low-clearance assemblies. Confirm retracted length, extended length, mounting clearance, hose bend radius, and service access. Critical
Bore Diameter Selected from required force For extension, theoretical force is approximately F = p × A, where pressure is in pascals and piston area is in square metres. Choose a bore that meets the required load with a reasonable design margin. Account for friction, acceleration, external resistance, pressure losses, and the difference between theoretical and usable force. Critical
Rod Diameter Based on load, stroke, and mounting A larger rod improves resistance to buckling and bending but reduces annular area during retraction. Long-stroke, side-loaded, or compression-loaded applications when properly guided. Use external guides for side loads whenever possible. Check buckling risk, rod strength, and unsupported length. High
Cylinder Tube Honed steel tube Provides a controlled internal surface for piston seals and supports pressure containment. General industrial and mobile hydraulic equipment. Internal surface finish, dimensional tolerance, corrosion protection, and pressure rating must match the seal design. High
Piston Rod Material Hard-chrome-plated carbon or alloy steel Chrome plating improves wear resistance and helps protect the rod surface from corrosion and seal damage. Standard indoor and outdoor hydraulic service with normal contamination control. Inspect plating quality and thickness. For severe corrosion or hygienic service, consider stainless or specialized rod protection. High
Cylinder Body Material Carbon steel or alloy steel Steel provides high strength and pressure capability in a relatively compact package. Most industrial, agricultural, construction, and mobile hydraulic systems. Use a suitable external coating or finish when exposed to moisture, salt, chemicals, or outdoor weather. General-purpose
Corrosion Exposure Stainless steel or enhanced surface protection Improves resistance to water, salt spray, cleaning fluids, and selected chemicals. Marine equipment, food-related washdown zones, outdoor machinery, and humid environments. Material compatibility depends on the specific chemical, concentration, temperature, and exposure time. Stainless steel is not universally corrosion-proof. Environment-driven
Rod Seal Polyurethane, nitrile rubber, or fluorocarbon elastomer Prevents hydraulic fluid leakage along the piston rod. The correct material depends on fluid, temperature, pressure, and speed. Polyurethane is commonly used for abrasion resistance; nitrile rubber suits many mineral-oil systems; fluorocarbon elastomers suit higher-temperature or chemical-resistant applications. Do not select by material name alone. Verify compatibility with the hydraulic fluid and the complete temperature range. Critical
Piston Seal Single-acting or bidirectional seal profile Maintains pressure separation between the two sides of the piston and affects leakage, friction, and efficiency. Choose according to whether pressure acts on one side or alternates between both sides. Check pressure differential, extrusion gap, speed, fluid type, and compatibility with the cylinder bore finish. Critical
Wiper or Scraper Standard, heavy-duty, or metallic-supported wiper Removes dirt, moisture, and particles from the rod before they enter the cylinder. Heavy-duty wipers suit construction, agricultural, and outdoor equipment with high contamination. A wiper cannot compensate for a damaged or poorly finished rod. Select the profile for the expected dirt, ice, and moisture conditions. High outdoors
Hydraulic Fluid Mineral oil, biodegradable fluid, or water-based fluid Fluid properties influence seal swelling, wear, lubrication, temperature capability, and corrosion behavior. Use a cylinder and seal package specifically matched to the fluid specified by the hydraulic system. Changing fluid type may require different seals, coatings, or assembly lubricants. Verify compatibility before conversion. Critical
Temperature Normal, low-temperature, or high-temperature service Temperature changes fluid viscosity, seal elasticity, friction, leakage, and material life. Specify the minimum and maximum operating temperatures, including start-up and ambient extremes. Short-term temperature spikes and heat conducted from nearby equipment must also be considered. Critical
Operating Pressure Rated working pressure with safety margin The cylinder must withstand normal working pressure, pressure spikes, and the forces generated during impact or stopping. Use the system pressure and the actual load cycle to establish the required rating. Never size only from nominal pump pressure. Check relief-valve settings, shock loads, fatigue, and pressure intensification. Critical
Operating Speed Low, moderate, or high rod speed Speed affects seal friction, heat generation, lubrication, and the risk of stick-slip or premature wear. Select seals and porting for the required extension and retraction speeds. Flow rate determines speed approximately as v = Q / A. Confirm cushioning and flow-control requirements at the end of stroke. High
Mounting Clevis, flange, trunnion, foot, or threaded mounting Mounting style transfers cylinder forces into the machine structure and controls alignment. Choose the mounting that best supports the load path and allows angular movement where required. Misalignment and side loading can shorten seal and bearing life. Confirm pin diameter, mounting width, and alignment tolerances. Critical
Cushioning None, fixed, or adjustable end-of-stroke cushioning Cushioning reduces impact energy as the piston approaches the end cap and can lower noise and structural stress. Useful for higher speeds, heavier loads, or frequent cycling near the end of stroke. Cushioning does not replace external shock absorbers when the load energy is high or the stopping profile is demanding. Cycle-dependent
Maintenance Conditions Accessible or difficult-to-service installation Replaceable seals, accessible ports, inspection clearance, and standard mounting dimensions simplify service. Choose service-friendly construction for equipment with high cycle counts or limited downtime. Allow room for rod inspection, seal replacement, bleeding air, hose removal, and contamination control. Lifecycle-focused
General engineering guidance only. Final cylinder selection should be verified against the actual load, pressure, speed, stroke, fluid, temperature, mounting arrangement, and applicable safety requirements.

Compare Durability, Maintenance, and Total Cost

How to Choose a Compact Hydraulic Cylinder?

A compact hydraulic cylinder should be judged beyond its purchase price. Check the tube material, rod coating, seal design, and rated pressure. These details decide whether a cylinder survives dust, side loading, and repeated shock. ISO 4413 recommends controlling contamination, pressure, and installation risks in hydraulic systems. A cylinder with stronger seals may cost more, but leaking oil can damage nearby sensors and create slippery floors. Small spaces amplify small failures.

Maintenance reveals the real cost. The U.S. Department of Energy’s Operations & Maintenance Best Practices guide reports that predictive maintenance can reduce maintenance costs by 25–30% compared with reactive practices. It also identifies potential returns near ten times the maintenance investment. For a compact cylinder, that means checking rod wear, seal leakage, mounting alignment, and fluid cleanliness before failure. Keep inspection access practical. Otherwise, maintenance becomes a postponed task.

Total cost includes downtime, labor, replacement fluid, and emergency shipping. A cheaper cylinder may appear efficient on paper. That judgment is incomplete. Compare expected service life, seal-kit price, inspection time, and failure consequences. Ask for pressure-cycle data under conditions close to your machine. Laboratory numbers can mislead when the cylinder faces vibration, heat, or uneven loading. I would also question optimistic life estimates without test methods. Reliability needs evidence, not confident wording.
